Building Stronger: Creating Disaster-Proof Structures with SIPs

As natural disasters intensify globally, the urgency for resilient, disaster-resistant buildings has reached a critical point. Right now, wildfires are raging across many regions of the United States, impacting states like California, Washington, and Nevada, to name a few. These fires pose significant threats, not only to homes and businesses but also to the safety of entire communities. Structural Insulated Panels (SIPs) offer a powerful solution for constructing buildings that can withstand extreme conditions, including fires, floods, hurricanes, and earthquakes. By building disaster-proof structures with SIPs, architects and builders can take a vital step toward safeguarding both lives and infrastructure from nature’s most unpredictable forces.

Exceptional Strength for Extreme Conditions

SIPs are engineered to handle the forces of nature with exceptional strength. Their solid, factory-laminated construction ensures that buildings remain secure during events like high winds, hurricanes, and even earthquakes. When constructed with SIPs, buildings offer superior defense against structural damage, protecting both property and occupants.

As wildfires sweep across many regions, homes are increasingly at risk of fire damage. SIPs, designed with fire-retardant materials, can significantly reduce the spread of flames, providing valuable time for evacuation and potentially minimizing property destruction. In the face of wildfires, SIPs can offer home and business owerns peace of mind.

⇒ SIP Highlight: In the '90s, Oakland Hills, California, faced a devastating and fast-moving firestorm that quickly flattened homes. SIP walls and roofs, being solid cavity panels, have minimal air movement within the building enclosure, unlike traditional stick and batt framed assemblies. This design means there was little oxygen available to "feed" the fire's spread through the structures that remained standing as the fire ravaged the neighborhood.

Resisting Fire: SIPs Provide Critical Advantage

Fire safety is at the forefront of disaster-proof design, particularly in wildfire-prone regions. SIPs offer multiple layers of fire protection that make them a standout option in fire-resistant construction.

• Solid Composition: Unlike traditional cavity wall systems, SIPs are non-hollow, reducing the risk of fire spreading through air circulation within walls.
• Airtight Envelopes: The airtight construction of SIPs prevents the entry of smoke, harmful fumes, and fire debris into the home, even during nearby wildfires. This feature helps maintain air quality and provides an additional layer of safety for residents.
• Eliminating Vented Attics: Traditional vented attics allow embers from nearby fires to enter, potentially igniting the structure from within. SIPs eliminate the need for venting, reducing the vulnerability of homes to fire-related damage.

SIPs have passed stringent fire tests, including the ASTM E110, demonstrating a fire-resistance rating of up to one hour. This rating ensures that structures built with SIPs can offer critical protection, giving occupants time to escape while mitigating fire damage.  SIPS have proven their safety in fire exposure tests such as NFPA 286 Corner Room Fire Test, NFPA 251 Fire Resistance Test (20 minutes & 1 hour), NFPA 255 Flame & Smoke Developed Test, and UL 1256 Roof Assembly Flame & Smoke Developed Test.  These successful fire tests used properly applied gypsum wallboard thermal barriers.

⇒ Project Highlight - Enchanted Hills Lighthouse Camp for the Blind:  "This camp was burned out in the CA wildfires in Napa. By utilizing SIPs on the roof, the rebuilt camp was able to achieve the stringent fire codes in the area, gain significant energy efficiency over the burned-down buildings, and enabled the camp to resume operations much faster than anticipated because of the speed of construction SIPs delivered." - Client  (View Project Here)

Additional Key Resources

• SIPs & Fire Performance FAQ - Understanding the Safety of Structural Insulated Panels
• SIPs & Multistory Fire Safety
• Building Fire Safety in Wildland Urban Interface Zones




Enduring Floods and Moisture Challenges

Flooding poses another significant threat to buildings, especially in low-lying or coastal areas. SIPs provide exceptional durability in flood conditions. Unlike traditional materials, SIPs resist rot, mold, and pest infiltration, even after being exposed to moisture during floods.

SIPs maintain structural integrity despite water exposure, ensuring that your building remains stable and safe, even in disaster recovery phases. This resilience ensures long-term durability, reducing the likelihood of costly repairs after flood events.

⇒ SIP Highlight: When Hurricane Michael devastated the Eastern Coast in 2018, many traditionally framed houses were destroyed. However, the SIP home, with its large, strong panels [which function like a steel I-beam] form a durable barrier (a true structural unit rather than thousands of pieces of site-framed wood and other components nailed together), stood resilient against this Category 5 Atlantic Coastal hurricane.

Additional Resources:

•  FEMA: Homebuilder's Guide to Coastal Construction (Jump to Fact Sheet 1.7 for SIPS)

• APA Tech Topic - Moisture Content & Drying in Wood Buildings

Standing Strong Against Hurricanes, Tornados, and Earthquakes

⇒ Project Highlight: When a Tennessee Tornado touched ground, many conventionally framed houses were destroyed, but this SIP home stayed intact, and literally shifted off of the foundation. The monolithic shell of SIPs prevents structures from collapsing,  preserving all interior items.

In hurricane-prone regions, SIPs provide added protection. Engineered to meet the rigorous demands of high-velocity winds, SIPs can withstand hurricane-force gusts exceeding 180 mph, making them an ideal choice for coastal and storm-vulnerable areas.  ​​Approved for use in high coastal wind regions, and high seismic (earthquake) zones, including CA, AK, WA, and OR.

See SIPs Hurricane Compliance Product Testing in Action

Additionally, SIPs undergo seismic testing to ensure their structural integrity during earthquakes. This engineering ensures that your building will stand firm, protecting occupants during these powerful natural disasters. Premier SIPS became the first SIPs manufacturer to achieve a full range of ICC seismic-tested SIP walls with Axial Loads applied for code recognition.

⇒ Project Highlight: Residents of Kobe, Japan will never forget the 7 magnitude earthquake that crippled the massive Asian city.  While many structures were flattened, SIP houses escaped damaged virtually unscathed. View Case Study.

Additional Resources:

• Forest Products Laboratory: Performance of Structural Insulated Panel Walls under Seismic Loading
• National Research Council: Structural & Durability Testing Compliance Report
• USDA & APA - Joint Research Report: Wood Structural Panel & Foam Insulation Systems
•  ORNL - Oak Ridge National Labs (DOE Testing Agency) - Structural Analysis of SIPS

Future-Proof Your Building with SIPs

SIPs go beyond meeting today’s building codes. As climate change accelerates and natural disasters become more frequent, SIPs provide a forward-thinking solution for resilient construction. These disaster-proof panels offer greater strength, enhanced insulation, and superior energy efficiency, all while minimizing air leakage. Buildings constructed with SIPs not only withstand today’s challenges but are also ready for the unknowns of tomorrow.

Designing and building with SIPs is a commitment to safety, sustainability, and resilience in a world where disaster-proof design is no longer optional but essential. Contact your local Premier SIPS Rep to learn how you can protect your next project from the unpredictable forces of nature.

Read More: Why True High-Performance Buildings Incorporate Durability & Resiliency

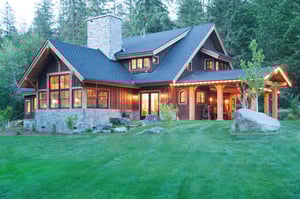

⇒ Project Highlight - Cascade Mountain Lodge:  After a devastating forest fire, this homeowner rebuilt with Premier SIPS, creating a beautiful, lodge-style home in the Pacific Northwest Cascade Mountain range.  In Seismic Zone D and heavy snowfall conditions, Premier SIPS delivered the strength needed for large roof loads without the need for an extensive truss system.  Simple engineering, maximum impact! (View Project)
