Project Overview

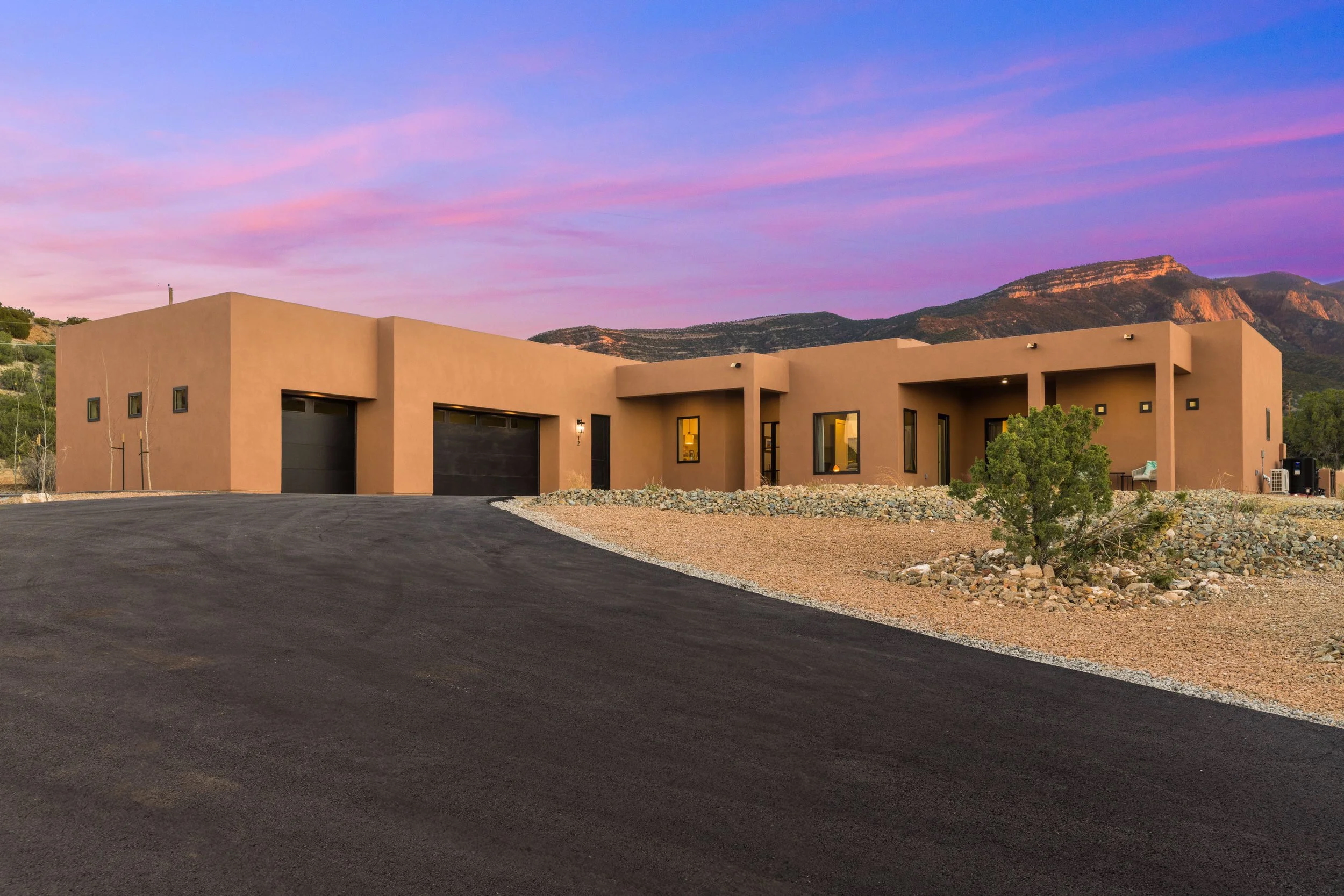

Rainbow Valley Road Residence, New Mexico

High-Performance SIP Home Designed for Desert Living

Rainbow Valley Rd is a custom residential project located in New Mexico, designed to deliver durability, comfort, and energy efficiency in a hot, arid climate. Developed by Spiegel Kinsley, the home reflects a performance-focused approach that balances modern residential design with construction strategies suited to extreme temperature swings and intense solar exposure.

Structural Insulated Panels (SIPs) were used as a primary building envelope system, supporting energy efficiency, construction quality, and long-term livability in a challenging desert environment.

Design and Sustainability

The design of Rainbow Valley Rd prioritizes envelope performance as the foundation for comfort and efficiency. In desert climates, reducing heat gain, controlling air infiltration, and maintaining thermal stability are essential to minimizing cooling demand and improving occupant comfort.

SIP construction supports these goals by delivering continuous insulation and low air permeability, helping the home maintain consistent interior conditions while reducing reliance on mechanical cooling. The design emphasizes durability and efficiency, aligning long-term performance with the demands of the local climate.

Why SIPs?

Structural Insulated Panels (SIPs) were selected to provide a reliable, high-performance construction system well suited to desert residential construction. SIPs integrate structure, insulation, and air sealing into a single assembly, reducing thermal bridging and improving envelope continuity compared to conventional framing.

For this project, SIPs offered a predictable way to achieve strong energy performance while simplifying construction and supporting consistent quality throughout the building envelope.

Benefits of SIPs

The use of SIPs delivered several key advantages for Rainbow Valley Rd:

• Energy Efficiency:
  Continuous insulation and airtight construction help reduce heat gain and cooling demand in a hot climate.

• Interior Comfort:
  SIPs support stable indoor temperatures and reduced drafts, improving comfort during extreme outdoor conditions.

• Construction Quality:
  Factory-built panels improve dimensional accuracy and reduce onsite variability.

• Durability:
  SIP construction provides a solid, long-lasting envelope designed for residential use in demanding environments.

Construction and Innovation

SIP construction enabled efficient enclosure of the home while maintaining envelope continuity across walls and roof assemblies. The panelized system helped streamline installation and improve overall build quality, supporting a clean and efficient construction process.

This approach reinforces the project’s focus on performance-driven residential design rather than reliance on oversized mechanical systems.

Performance & Sustainability Features

• Build Green New Mexico – Emerald Certification
  Highest certification level available, comparable to LEED® Platinum
  Requirements included near net-zero design, deep energy savings, material transparency, and construction waste reduction

• Net Zero Energy Performance:

  • Net Zero home with 120% annual energy usage offset

  • HERS Index 41–43; HERS 0 when solar is factored in

  • Energy performance exceeding 40% below 2018 IECC requirements

• Airtightness and Energy Performance:

  • Blower door test result: 1.84 ACH50

  • Annual energy use: 43.2 MMBTU/year total

• High-performance building shell:

  • Sealed attic with R-60 insulation

  • Above-grade walls: R-28 using 6.5" SIP panels

  • Slab insulation: R-10

• Heating, cooling, and hot water:

  • LG cassette mini-split systems serving each room, connected to two condensers

  • Heat pump water heater with recirculation buttons at all water sources

• On-site renewable energy:

  • 10.56 kW solar photovoltaic system (24 panels)

  • Roof-mounted system

  • Inverter: SolarEdge, 10 kW AC output

• High-performance windows and lighting:

  • Andersen 100 Series windows, U-value 0.27

  • 100% LED lighting throughout the home

• Energy-efficient appliances:

  • Energy Smart Fisher & Paykel appliances

  • Phantom load reduction and energy monitoring included

• Thoughtful passive design strategies:

  • Minimized glazing on north-facing elevations

  • Covered patios on east and west sides to reduce solar heat gain

• Healthy and sustainable materials:

  • No-VOC Sherwin-Williams interior paints

  • CARB2-compliant J&K solid birch plywood cabinetry

  • Sustainably harvested wood from FSC-certified forests

  • Engineered hardwood flooring with no-VOC adhesive

• Water efficiency and site sustainability:

  • Low-water and no-water native landscaping

  • Small drip irrigation system on timer

  • Swales used to direct rainwater to planted areas

  • 90% construction waste diversion by weight

  • Extensive use of sustainable materials across more than 20 building components

Challenges and Solutions

Desert residential construction must address extreme heat, solar exposure, and long-term material durability. SIPs addressed these challenges by delivering a high-performance envelope that limits heat transfer, improves airtightness, and supports reliable interior comfort with fewer construction steps.

By focusing on envelope performance first, the project achieves efficiency and comfort without unnecessary complexity.

Key Features

• Custom single-family residence in New Mexico

• Structural Insulated Panel (SIP) wall and roof construction

• High-performance building envelope for desert climate conditions

• Energy-efficient residential design

• Durable, low-maintenance construction approach
